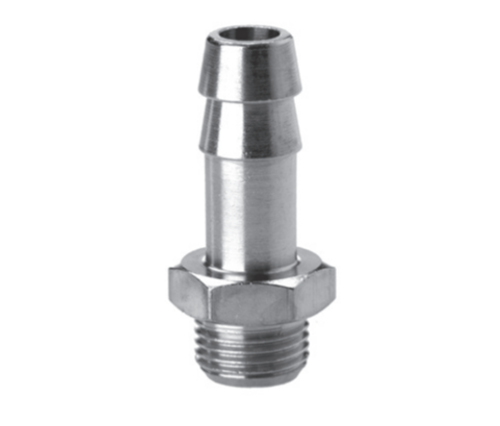

1/2 Thread BSP Adaptor Hose Tail Tube

1/2 Thread BSP Adaptor Hose Tail Tube 2601

Typical Application:
Grease,refrigeration,instrumentation and hydraulic systems.fuel

Advantages:
Dryseal pipe threads (BSPT(R)/BSP(G).Large range of sizes and configurations

SPECIFICATIONS

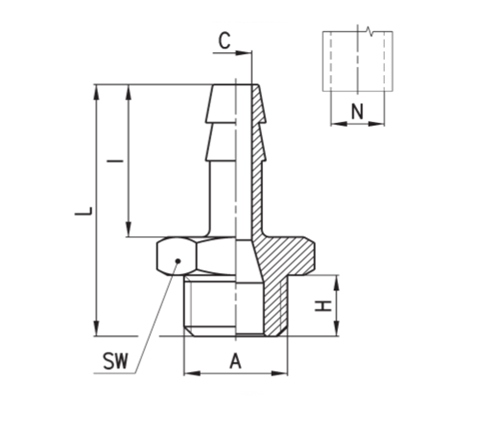

PART#	Thread size A	N	S.W	L	C	H	I
2601 2-M5	M5	2.0	8.0	16	1.2	6	8
2601 4.5-M5	M5	4.0	8.0	23	2.5	8	15
2601 7-1/8	G/18	7.0	12	30	4	9	20
2601 7-1/4	G1/4	7.0	17	33	4	9	20
2601 8-1/8	G1/8	8.0	12	33	5	10	20
2601 9-1/8	G1/8	9.0	12	30	5.5	10	20
2601 9-1/4	G1/4	9.0	17	33	6	10	20
2601 9-3/8	G3/8	9.0	17	34	6	9	20
2601 12-1/4	G1/4	12.0	19	33	8.5	8	20
2601 12-3/8	G3/8	12.0	17	34	9	9	20
2601 12-1/2	G1/2	12.0	19	35.5	9	10	20
2601 17-3/8	G3/8	17.0	19	38	12	9	24
2601 17-1/2	G1/2	17.0	24	39.5	13	10	24

The BSP adaptor tail tube is manufactured by using quality raw material. It is used for connecting the ball valve , union or nipple to the pipe line. It is highly appreciated by our customers due to its excellent quality and durability.
A wide range of pipe fittings, suitable for a variety of applications. Clean design with high-quality materials provide reliable performance and leak tightness.
