1465# Air Brake Nylon Tubing Union Elbow

Product Features:
■■ Brass Body
■■ Meets D.O.T. FMVSS571.106 Performance
■■ Meets functional Requirements SAE J246 & SAE J1131
■■ Pre-applied Thread Sealant

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines
■■ Cab Controls

Reference Part No:
65NAB - 265NTA - 1465 - S765AB

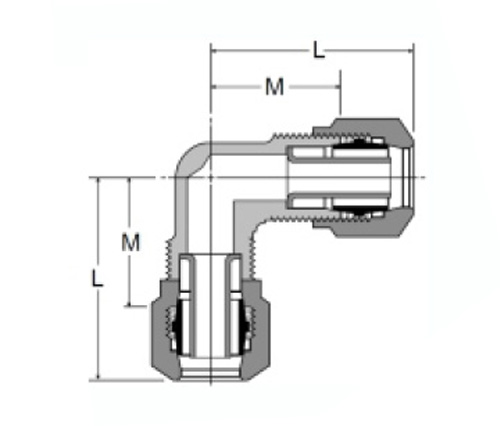

SPECIFICATIONS

PART#	TUBE SIZE	M
1465-4	1/4	.62
1465-6	3/8	.70
1465-8	3/8	.93
1465-10	5/8	1.02

*Ref.SAE No.100101 BA

This quality Union Elbow is available in a wide range of sizes and is used for applications such as secondary air ride lines and hydraulic brake applications, including primary and secondary lines.

This product is designed to provide a flexible connection between two pipes. It is necessary to join a system at the point where two or more pipes come together. A union is traditionally used in air brake systems to allow quick replacement of a defective part. It is also used in many other applications such as mobile equipment, trailers and special equipment applications.

Aircraft-quality, high tensile strength, crosslinked material for use in all applications where high strength-to-weight ratios and excellent low temperature characteristics are required.
