home / product / D.O.T AIR BRAKE NYLON TUBING FITTINGS / 1462BF# Air Brake–Fittings Bulkhead Union

1462BF# Air Brake–Fittings Bulkhead Union

Product Features:
■■ Brass Body
■■ Meets D.O.T. FMVSS571.106 Performance
■■ Meets functional Requirements SAE J246 & SAE J1131
■■ Pre-applied Thread Sealant

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines
■■ Cab Controls

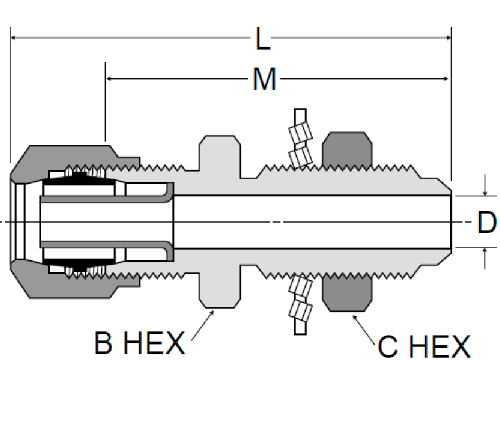

SPECIFICATIONS

Reference Part No:62NFBH

PART#	TUBE O.D × STRAIGHT THREAD	B	C	M	D
1462BF-4	1/4×7/16-24	9/16	9/16	1.38	.137
1462BF-6	3/8×17/32-24	11/16	3/4	1.62	.217
1462BF-8	1/2×11/16-20	13/16	1"	1.88	.338
1462BF-10	5/8×13/16-18	15/16	1"	2.02	.398

This bulkhead fitting has a brass-body with a visible metal gasket and features high and low pressure capabilities of 175 psi. The part number is 62NFBH. This bulkhead fitting has a tube O.t x straight thread.

The 1462BF Bulkhead Union is used to connect the primary brake hydraulic lines to the secondary brake hydraulic lines. The 1462 Bulkhead Union features a straight thread at each end and is available in brass or nickel-plated brass body material. The face seal design of this part allows for flow through both ports.

This part is manufactured from standard 304 stainless steel with a zinc finish, and meets or exceeds all applicable ASME codes. Straight thread with copper internal locking ring and pre-applied thread sealant for maximum performance.
