66BRSV Female swivel connector

Product Features:
■■ Brass Body
■■ Meets D.O.T. FMVSS571.106 when used
with SAE J1402 air brake hose

Markets:
■■ Heavy Duty Truck
■■ Trailer

Applications:
■■ Air Lines Frame to Axle

Reference Part No:
60ABS - 3380-Y7 - 386 - 66RBSV - S366RBSV - 366

SPECIFICATIONS

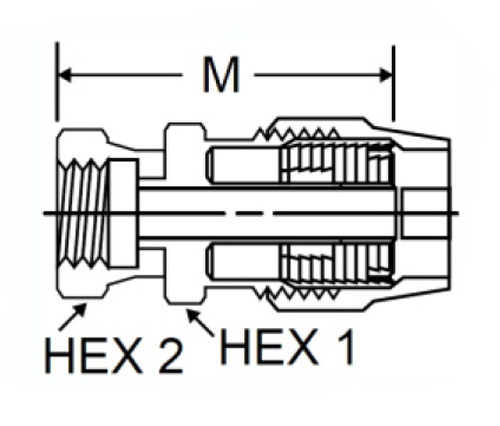

PART#	TUBE SIZE I.D × THREAD UNF	C	C2	M
66RBSV-6	3/8 I.D×3/4-20UNF	31/32	7/8	1.96
66RBSV-8	1/2 I.D×7/8-20UNF	1-1/8	1"	2.10

66BRSV Female Swivel Connector - Tube O.D.: 1/2" (12.7mm) - Tube I.D.: 9/16" (14.9mm).

A high performance SAE J1402/D.O.T. FFT-5 brake line swivel connector that is easy to install and is built to provide years of trouble free service. It features a corrosion resistant brass body with precision rolled threads and an integral compression spring seat ring eliminating the need for clamps or fittings commonly found on conventional hose ends.
