42# SAE 45° Flare Female Connector Brass Flare fittings

Product Features:
■■ All brass construction
■■ Resists vibration with use of long nut
■■ UL listing
■■ Functional requirements of SAE J512 and J513

Markets: Applications:
■■ Refrigeration ■■ Refrigerant Lines
■■ Heavy Duty Truck ■■ Propane
■■ Mobile ■■ Fuels
■■ Industrial ■■ Adapters
■■ Heating ■■ Natural Gas
■■ Air Conditioning

Reference Part No:
46 - U3 - 10227-10248

SPECIFICATIONS

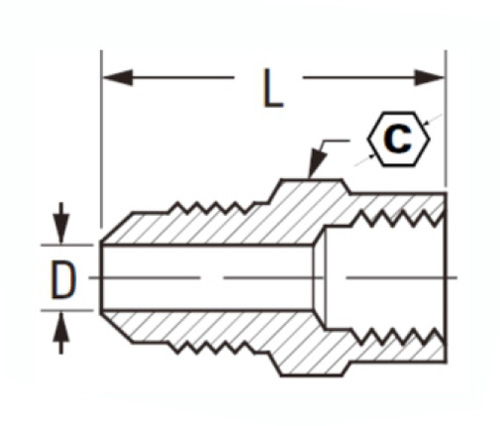

PART#	Flare O.D×Thread	C	D	L
46-3A	3/16×1/8	9/16	.126	.58
46-4A	1/4×1/8	9/16	.189	.69
46-4B	1/4×1/4	11/16	.189	.79
46L-4B	1/4×1/4	11/16	.189	.88
46-4C	1/4×3/8	13/16	.189	1.06
46-4D	1/4×1/2	15/16	.189	1.31
46-5A	5/16×1/8	5/8	.219	1.38
46-5B	5/16×1/4	11/16	.219	1.44
46-5C	5/16×3/8	13/16	.219	1.69
46-6A	3/8×1/8	5/8	.282	1.88
46-6B	3/8×1/4	11/16	.282	1.87
46L-6B	3/8×1/4	13/16	.282	1.31
46-6C	3/8×3/8	13/16	.282	1.44
46-6D	3/8×1/2	1"	.282	1.69
46L-6D	3/8×1/2	15/16	.282	1.44
46-8B	1/2×1/4	3/4	.408	1.60
46-8C	1/2×3/8	13/16	.408	1.62
46L-8C	1/2×3/8	13/16	.408	1.46
46-8D	1/2×1/2	1"	.408	1.73
46L-8D	1/2×1/2	7/8	.408	1.62
46-8E	1/2×3/4	1-3/16	.408	1.75
46-10C	5/8×3/8	7/8	.500	1.79
46-10D	5/8×1/2	1"	.500	1.98
46-12D	3/4×1/2	1-3/16	.625	2.17
46-12E	3/4×3/4	1-3/16	.625	2.08

"L"means light pattern.

These fittings are completely interchangeable with full pattern fittings,but have been modified insome way.

This modification is usually in the length of the pipe threads,Used in plumbing and light industrial applications

*DIMENSION DATA CAN CHANGE WITHOUT NOTICE

*Ref.SAE No.010103

The SAE 45° flare connector is designed for light-to-medium duty applications requiring high reliability. The 46-U3 is used for 10,000 PSI maximum pressure by using nitrile rubber hose with neoprene liner. This connector has a heavy nut which resists vibration and extends product life. The Sae male flare fitting uses a bayonet lock ring that requires no special tools to replace the fitting in case of failure or maintenance.
