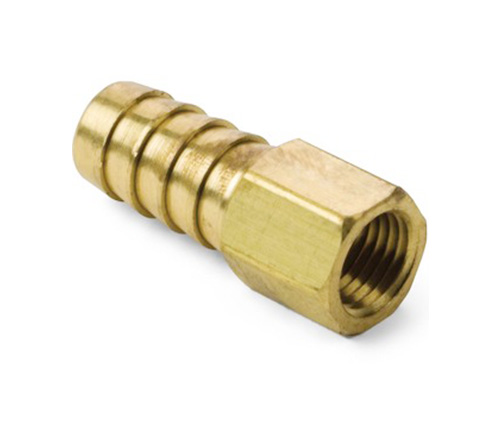

126 Hose Barb to Female Pipe

Product Features:
■■ All brass construction
■■ Fluorocarbon O-rings
■■ NPTF, SAE straight thread, metric thread ends
■■ Reusable
■■ Clamp required

Markets:
■■ Industrial
■■ Construction
■■ Heavy duty truck
■■ Mobile

Compatible Tubing:
■■ Rubber Hose
■■ GPH Hose

Reference Part No:
209A - 128 - 29A - 126HB - 105B-2 - KF-RS - 104 - 144

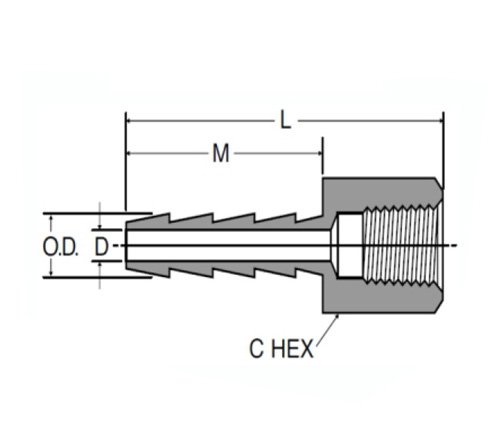

SPECIFICATIONS

PART#	HOSE I.D× Female NPTF	C	D	M	L
126-2A	1/8×1/8	1/2	.093	.46	.96
126-2B	1/8×1/4	11/16	.093	.46	1.15
126-3A	3/16×1/8	1/2	.125	.68	1.10
126-3B	3/16×1/4	5/8	.125	.75	1.44
126-4A	1/4×1/8	1/2	.187	.97	1.47
126-4B	1/4×1/4	11/16	.187	.97	1.58
126-4C	1/4×3/8	3/4	.187	.97	1.59
126-4D	1/4×1/2	15/16	.187	.97	1.66
126-5A	5/16×1/8	9/16	.250	.97	1.47
126-5B	5/16×1/4	11/16	.250	.97	1.58
126-5C	5/16×3/8	3/4	.250	.97	1.63
126-6A	3/8×1/8	9/16	.281	.97	1.47
126-6B	3/8×1/4	11/16	.281	.97	1.58
126-6C	3/8×3/8	13/16	.281	.97	1.63
126-6D	3/8×1/2	15/16	.281	.97	1.72
126-8B	1/2×1/4	5/8	.375	.69	1.66
126-8C	1/2×3/8	13/16	.375	.97	1.59
126-8D	1/2×1/2	1"	.375	.97	1.73

*316 stainless steel can be supplied

This hose barb connector is an economical, reusable connector designed to provide a tight fit and excellent seal life. All brass construction with fluorocarbon O-rings and either NPTF, SAE straight thread, or metric threads.

The 126 Hose Barb to Female Pipe fits a variety of applications, including fluids. This high quality product is preferably used in any industries where strong and efficient flow control is needed. The 126 Hose Barb to Female Pipe has been designed with premium material that results in greater durability and longevity. With its complete range of industry standard fittings this product is guaranteed to fit most standard demand applications.

The female pipe fitting is designed for use with stainless steel and plastic pipe, hose, or tubing. The fitting features a clamp lead design which allows you to secure it firmly in place.
