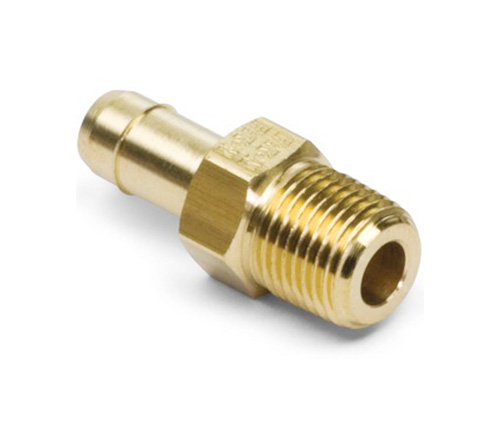

28# Mini Hose Barb Male Connector

Product Features:
■■ Compact
■■ One piece
■■ No clamp required
■■ Good vibration resistance

Markets:
■■ Pneumatic
■■ Environmental control

Applications:
■■ Pneumatic Systems
■■ Climate Control
■■ Humidifiers
■■ Filters

Compatible Tubing:
■■ Polyethylene

SPECIFICATIONS

All size are tube o.d(i.d)

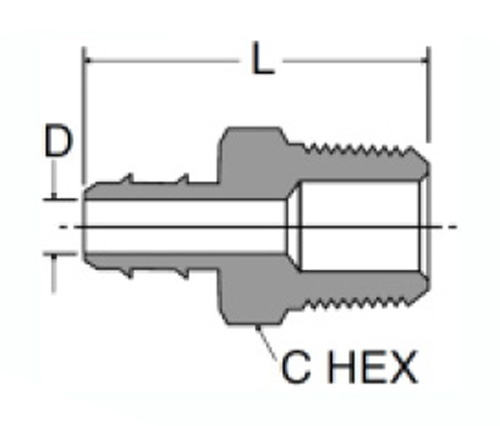

PART#	HOSE O.D×THARED	D	L	C
28-5/32A	5/32×1/8	.062	.84	7/16
28-4-1	1/4×1/16	.120	.93	3/8
28-4A	1/4×1/8	.120	.97	7/16
28-4B	1/4×1/4	.120	1.09	9/16
28-6A	3/8×1/8	.187	1.00	7/16
28-6B	3/8×1/4	.187	1.13	9/16
28-8B	1/2×1/4	.312	1.25	9/16
28-8C	1/2×3/8	.312	1.28	11/166
28-8D	1/2×1/2	.312	1.44	7/8

The Mini Hose Barb Male Connector is a compact and durable connector that fits onto standard, flexible 3/8” I.D. tubing and can be used in pneumatic, environmental control, and humidifier applications. The one-piece design of this connector has no clamp required or threads that could come loose over time, resulting in potentially dangerous leaks. This connector also has good vibration resistance, meaning it will not fall off under normal operating conditions like lesser quality connectors on the market today.

The Fittings feature a one piece design that requires no clamp, and the barb has good vibration resistance characteristics. Additionally, the barb will fit 1/8" polyethylene tubing.

The miniature hose barb connector is a simple, compact and economical fitting that can be used on most pneumatic systems. It is also used in filters and humidifiers as a way to attach hoses or tubing. It comes in different lengths and sizes to fit your specific needs.
