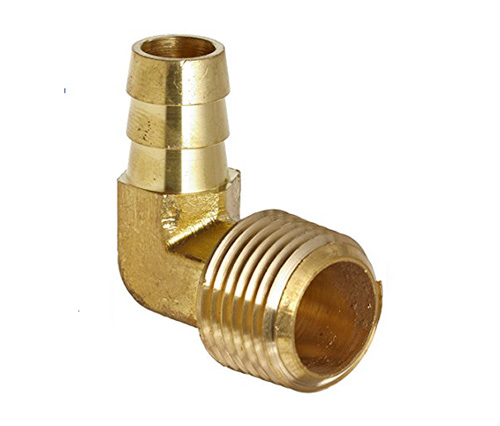

129 Hose Barb 90° Elbow to Male Pipe

Product Features:
■■ All brass construction
■■ Fluorocarbon O-rings
■■ NPTF, SAE straight thread, metric thread ends
■■ Reusable
■■ Clamp required

Markets:
■■ Industrial
■■ Construction
■■ Heavy duty truck
■■ Mobile

Compatible Tubing:
■■ Rubber Hose
■■ GPH Hose

Reference Part No:
129 - HBE1 - KF-PS90 - 29E - 146

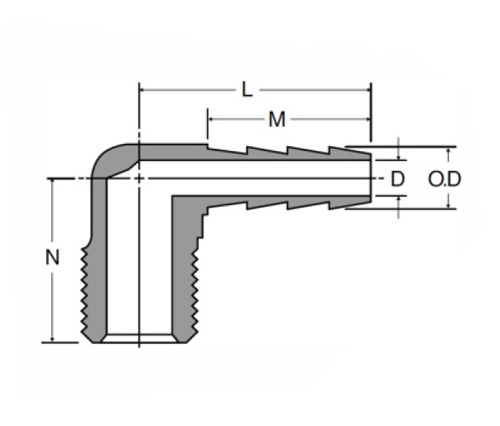

SPECIFICATIONS

PART#	HOSE I.D×MAEL NPTF	D	N	M	L
129-3A	3/16×1/8	.125	.84	.84	1.18
*129-4A	1/4×1/8	.187	.66	.76	1.04
*129-4B	1/4×1/4	.187	.86	.76	1.10
129-40	1/4×3/8	.187	.97	.97	1.58
129-5A	5/16×1/8	.250	.81	.76	1.01
*129-5B	5/16×1/4	.250	.86	.76	1.04
*129-5C	5/16×3/8	.250	.94	.97	1.58
129-6A	3/8×1/8	.281	.81	.78	1.12
*129-6B	3/8×1/4	.281	.84	.78	1.13
*129-6C	3/8×3/8	.281	.95	.78	1.25
*129-6D	3/8×1/2	.281	1.13	.78	1.35
129-8B	1/2×1/4	.415	1.00	.78	1.17
129-8C	1/2×3/8	.415	1.00	.78	1.17
*129-8D	1/2×1/2	.415	1.13	.79	1.36
129-10C	5/8×3/8	.530	/	.87	1.31
129-10D	5/8×1/2	.530	/	.87	1.36
129-12D	3/4×1/2	.790	/	.87	1.36
129-12E	3/4×3/4	.790	/	.91	1.46

* PTF Short Thread

Used to create a 90 degree elbow, this hose barb elbow is constructed of brass for long-lasting service. All fittings are compatible with plastic or rubber tubing. This fitting comes in both NPTF, SAE straight thread and metric thread ends. The fitting requires a clamp for proper installation.

Male pipe connector 90° elbow to hose barb. Fluorocarbon O-rings ensure smooth operation with rubber hose and measures 2.00" (51 mm) I.D. x 1.50" (38 mm) O.D..This elbow is constructed of high-quality, brass materials and comes with a reusable O-ring. The 90-degree bend allows for seamless transitions between pipes. Available in straight male pipe thread, female SAE tapered thread and metric threads.

Hose barb 90° elbow with male pipe fittings provides a secure connection between our products. This product is designed to remove any potential leakage points, ensuring that your hoses stay securely attached to your fittings.
