105 Steel Tube Nut Flare Fitting

Product Features:
■■ All brass construction
■■ UL listed for flammable liquid and gas
■■ Meets functional requirements of SAE J512
■■ Steel nut for economy

Markets: Applications:
■■ Air Conditioning ■■ Refrigerant Lines
■■ Marine ■■ Brake Lines
■■ Mobile ■■ Fuel Lines
■■ Engines

Compatible Tubing:
■■ Copper
■■ Brass
■■ Aluminum
■■ Welded Steel Hydraulic Tubing

Reference Part No:
2015 - 411FS - 105 - 41w

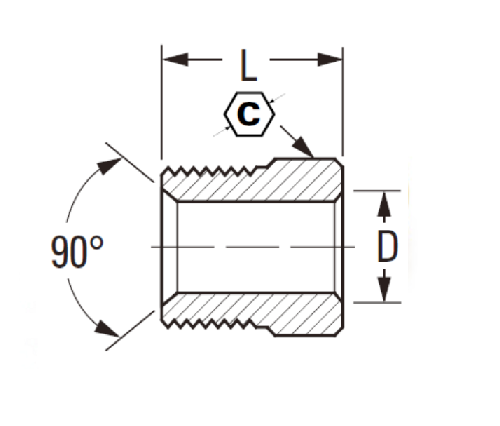

SPECIFICATIONS

PART#	TUBE O.D	C	D	L
105-3	3/16	5/16	.196	.56
105-4	1/4	3/8	.259	.56
105-5	5/16	7/16	.321	.62
105-6	3/8	5/8	.384	.66
105-8	1/2	3/4	.508	.74
105-10	5/8	7/8	.632	.80
105-12	3/4	1-1/16	.757	.88

The 105 Series is a low cost flare fitting. It is made of brass, and has the features of flammable fluid and gas lines. The 105 Series includes steel nuts for economy, which are available in many sizes. It also boasts compatibility with numerous tubing materials including copper, brass, aluminum, and welded steel hydraulic tubing.

The Part No: 2015 - 411FS - 105 - 41w has been manufactured by Miller Welder to help make the industrial and commercial environment safer, more efficient and affordable. The Part No.: 2015 - 411FS - 105 - 41w is UL rated for flammable liquids and gases. This product is made of a high grade brass that will not corrode or rust in use.

The 105 Steel Tube Nut Flare Fitting delivers a long lasting product with a 1/2" male NPT fitting and a 3/8" flare. It's made from high quality all brass construction, meeting or exceeding all relevant codes of ANSI B16.11 and SAE J512. This product is designed for use in the following applications: air conditioning (including automotive AC lines), refrigerant lines and refrigerant oil lines, marine, brake lines, mobile fuels lines, engines, etc.

This 3/4" x 3/4" x 8" steel nut flare fitting with pressure seal gasket can help you get the reliability, durability and safety you demand from your industrial tubing lines. A cast-brass body and a solid brass swivel make this fitting extra durable, while a leak free steel nut finish helps prevent any corrosion issues.
