home / product / PIPE FITTINGS / Female Bulkhead Coupling Pipe Fittings 1/2×1/4

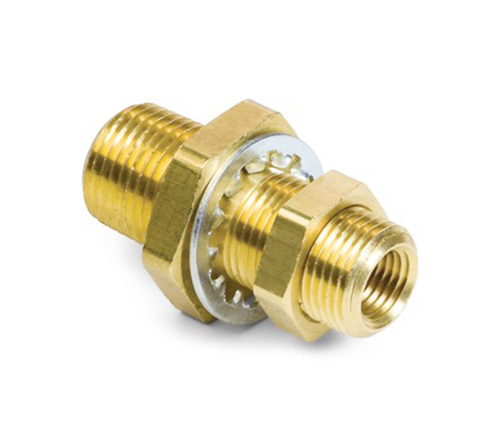

Female Bulkhead Coupling Pipe Fittings 1/2×1/4

Female Bulkhead Coupling Pipe Fittings 1/2×1/4 1340
Vibration resistance - Fair resistance to vibration and pipe movement depending upon conditions.
Advantages - Fewer leaks in the system, Large range of sizes and configurations (extruded/barstocked, hex forged, nickel plated/round forged).
Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Working Pressure: 1200 PSI Maximum based on size always consult tubing/pipe specifications.

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

SPECIFICATIONS

Reference Part No:
1340 - 28317 - 28318 - 28319

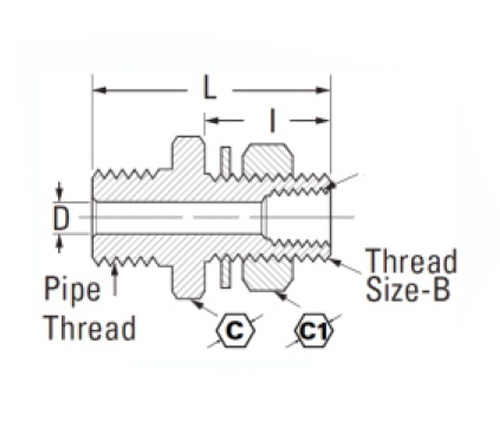

PART#	Female x Male	C	C1	Size-B	I	L
1340	1/2×1/4	1"-1/4	1"	3/4-16	1.13	2.16
1341	1/2×1/4	1"-1/4	1"	3/4-16	1.53	2.53
1342	1/2×3/8	1"-1/4	1-3/8	1-14	1.88	2.94
1343	1/2×3/8	1"-1/4	1-3/8	1-14	2.88	3.94

The Female Bulkhead Coupling Pipe Fittings 1/2×1/4 1340 is manufactured by the highest quality standards and gives you a durable opportunity to stay in your business. It works great for applications such as :Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems. Female Bulkhead Coupling 1/2"x1/4" pipe fitting is used to join two pipes without the use of any bolts or screws. This is a compact and sturdy fitting that is designed for multiple purposes such as to join two pipes, connect sections of pipe line, manifolds, etc. Each fitting has a pressure rating of 1200 PSI at maximum operating pressures.Our bulkhead couplings are designed for use in petroleum and chemical applications, such as in process industry and marine.
