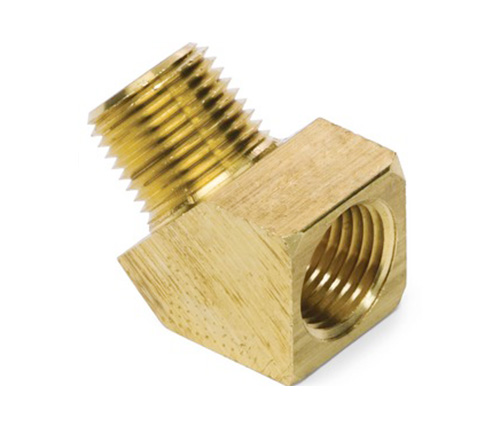

3350# 45 Degree Street Elbow Brass Pipe Fittings

Product Features:       Markets:
■■ All brass construction ■■ Industrial
■■ Meets functional requirements of ■■ Construction
SAE J530 and SAE J531 ■■ Heavy duty truck
■■ Threads made to dryseal standards ■■ Mobile
■■ Both forgings and extrusions available   ■■ Factory/process automation

Applications: Compatible Tubing:
■■ Air Lines   ■■ Copper
■■ Water Line   ■■ Brass
■■ Cooling Lines ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
306 - 3350 - 2214P - 224 - 124A

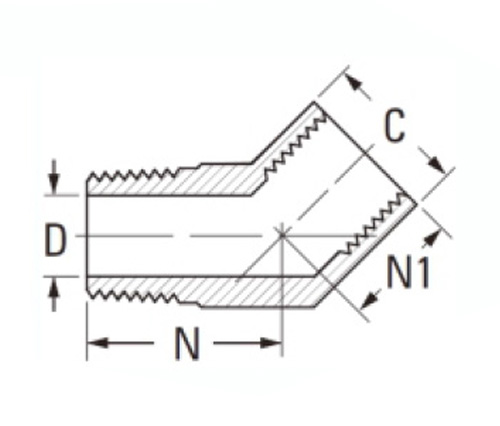

SPECIFICATIONS

PART#	Thread Size	C	D	N	N1
3350-A	1/8×1/8	9/16	.219	.50	.38
3350-B	1/4×1/4	11/16	.315	.74	.56
3350-C	3/8×3/8	13/16	.438	.78	.56
3350-D	1/2×1/2	1"	.562	1.00	.76
3350-E	3/4×3/4	1"-1/4	.750	1.06	.75

*REF.SAE NO.130339

The 3350 is a 45 degree street elbow shaped fitting. The fitting is made to be used with a variety of different piping materials and can withstand up to 1000 PSI. It also has an operating temperature range between -65˚ and +250˚F.Our 45 Degree Street Elbow Brass Pipe Fittings are made to your exact specifications by our team of experienced fabricators. The street elbow is a pipe fitting that has two pipe threads on one end and the other end has a 90° bend in the pipe. The street elbows are used in many different industries from plumbing to transportation. Street elbows are made in female or male configuration to increase flow of fluids or gases over a range of pressures, temperatures and line sizes as needed by the customer.
