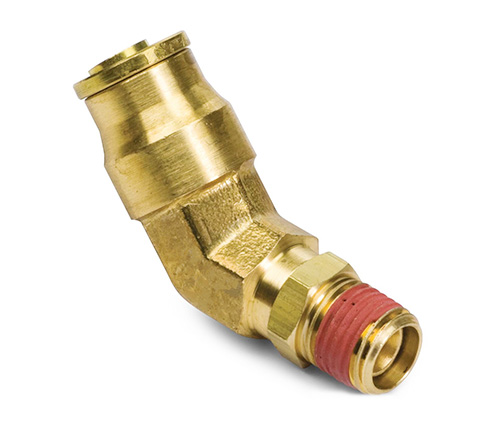

1554S D.O.T Male 45° Swivel Elbow Adapter

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494 & SAE J2494-3

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:
AQ54DOTS - 179PMTNS - 1880 - DQ54DOT - 1554SDOT

SPECIFICATIONS

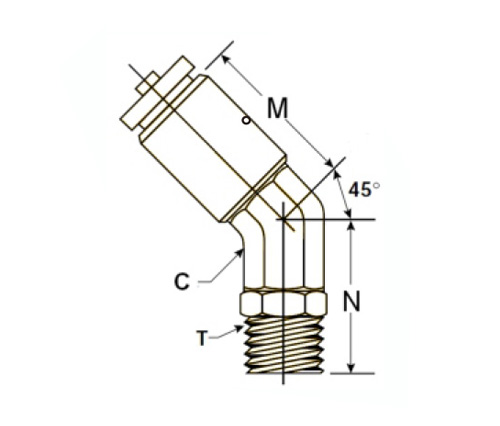

PART#	TUBE O.D×MALE NPTF	C	M	N
1554S-DOT-4A	1/4×1/8	3/8	.89	.89
1554S-DOT-4B	1/4×1/4	3/8	.89	1.06
1554S-DOT-6A	3/8×1/8	1/2	.98	1.07
1554S-DOT-6B	3/8×1/4	1/2	.98	1.07
1554S-DOT-6C	3/8×3/8	1/2	.98	1.18
1554S-DOT-8B	1/2×1/4	5/8	1.09	1.17
1554S-DOT-8C	1/2×3/8	5/8	1.09	1.20
1554S-DOT-8D	1/2×1/2	5/8	1.09	1.57
1554S-DOT-10D	5/8×1/2	11/16	1.32	1.63

The 1554S D.O.T Male 45° Swivel Elbow Adapter is a 90 degree bend that allows components of air line systems to connect or meet at an angle. The 1554S is made from a solid brass body and stainless steel support tubes with a Buna N O-ring to provide a reliable seal. It meets D.O.T FMVSS571.106 and SAE J2494 & SAE J2494-3 standards for safety and durability. Use this 45° elbow connector with 2B series tubing part numbers, DQ-1554SDOT-6A3/8×1/81/2, DQ-1554SDOT-6B3/8×1/41/2, DQ-1554SDOT-6C3/8×3/81/2, D1404SDOT-8B1/2×1/45/8, HN55DOTS-10D5/8×1/21 (standard duty) tubing part number 1880PMTNS in applications including air brakes, air tanks, air ride suspension systems, trailer air lines and tire inflations
