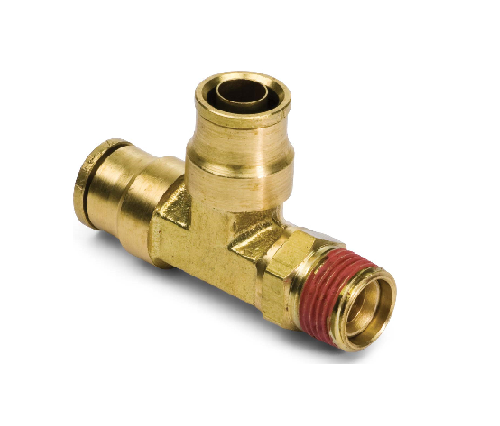

1571S D.O.T Swivel Run Tee

1571S D.O.T Swivel Run Tee

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494 & SAE J2494-3

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:
AQ71DOTS  -  171PMTNS  -  1871  -  DQ71DOTS  -  1571SDOT

Contact Us

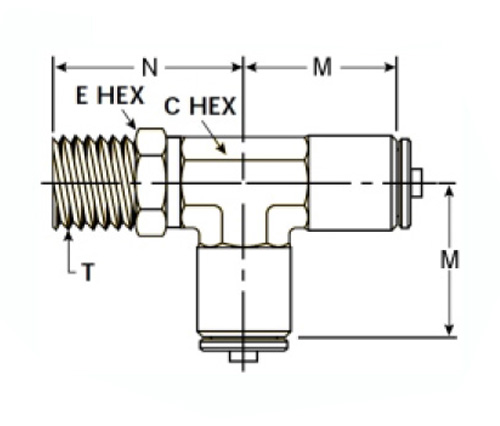

SPECIFICATIONS

PART# TUBE O.D ×MALE NPTF C E M N
1571S-DOT-4A 1/4×1/8 3/8 7/16 .88 1.03
1571S-DOT-4B 1/4×1/4 3/8 9/16 .88 1.03
1571S-DOT-6B 3/8×1/4 1/2 9/16 .98 1.10
1571S-DOT-6C 3/8×3/8 1/2 11/16 .98 1.16
1571S-DOT-8C 1/2×3/8 5/8 11/16 1.14 1.23

The 1571S-DOT, D.O.T Male Branch Tee adapter is applicable for SAE J844 Type A & B nylon tubing and meets D.O.T FMVSS571.106. The design of the DOT male branch tee creates an airtight seal when connected to a distribution block or manifold. Engineered to meet or exceed OE specifications and materials, the 1571S-DOT is built-to-last for your heavy duty truck, trailer or mobile applications.Our D.O.T Male Branch Tee Adapters provide excellent locking performance under pressure and large flow rates. They are designed to be assembled with SAE J844 Type A & B nylon tubing and can be used in both air and hydraulic applications.These brass female adapters are used to connect hoses to an NPT thread on brakes, valves and other fittings. These adapters feature a brass collet that makes attaching and removing these adapters easy.
