79# Compression Fittings  Brass 45° Male Elbow

79# Compression Fittings Brass 45° Male Elbow

Brass 45° Male Elbow Compression Fittings  79#

Applications:                          Markets:
■■ Air lines                            ■■ Industrial
■■ Lubrication Lines                ■■ Packaging
■■ Cooling lines                      ■■ Pneumatic
■■ Industry                            ■■ Printing
■■ Machinery
■■ Compressors
■■ Fluid transfer

Product Features:
■■ Meets functional requirements of SAE J-512
■■ UL Listed for flammable liquid
■■ Brass or acetal sleeve available
■■ No tube preparation
■■ Forged and extruded shapes

Reference Part No:
273  -  179C  -  74  -  77  -  6945

Contact Us

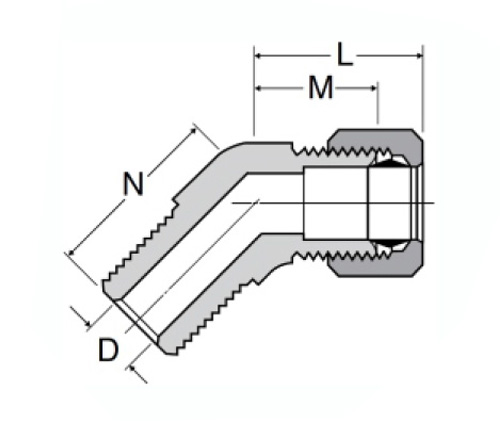

SPECIFICATIONS

PART#

TUBE O.D × MALE NPTF

N

M

D

79-3A

3/16×1/8

.61

.43

.125

79-4A

1/4×1/8

.61

.43

.189

79-4B

1/4×1/4

.83

.59

.189

79-5A

5/16×1/8

.66

.66

.234

79-5B

5/16×1/4

.83

.66

.250

79-6A

3/8×1/8

.66

.62

.312

79-6B

3/8×1/4

.83

.62

.312

79-6C

3/8×3/8

.88

.75

.312

79-8C

1/2×3/8

.94

.75

.406

79-8D

1/2×1/2

1.13

.94

.406

*Ref.SAE No.060302 BA

Compression fittings are manufactured of brass and assembled with a compression ferrule and nut. Forged, extruded mandrels provide strength in all directions for a permanent installation.
These compression fittings are perfect for plumbing tubing with smooth, standard and demountable ends. They are also used as connector pipe fittings in many different industries including commercial, industrial, automotive and marine applications.
