70# Forged 90° Female Elbow Compression Fittings

Applications: Markets:
■■ Air lines ■■ Industrial
■■ Lubrication Lines ■■ Packaging
■■ Cooling lines ■■ Pneumatic
■■ Industry ■■ Printing
■■ Machinery
■■ Compressors
■■ Fluid transfer

Product Features:
■■ Meets functional requirements of SAE J-512
■■ UL Listed for flammable liquid
■■ Brass or acetal sleeve available
■■ No tube preparation
■■ Forged and extruded shapes

Reference Part No:
70 - 170C - S70 - 70A

SPECIFICATIONS

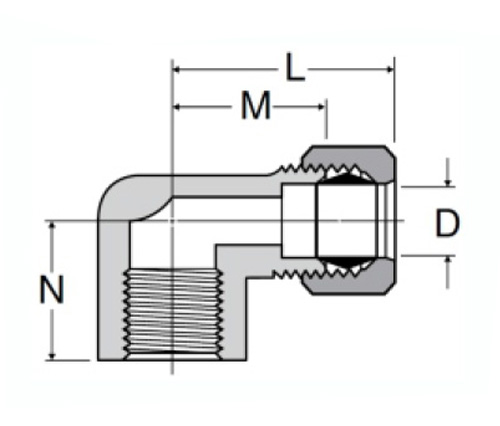

PART#	TUBE O.D x FEMALR NPTF	N	M	D
70-3A	3/16x1/8	.470	.69	.125
70-4A	1/4x1/8	.470	.69	.188
70-4B	1/4x1/4	.562	.75	.188
70-5A	5/16x1/8	.600	.78	.234
70-5B	5/16x1/4	.562	.78	.250
70-6B	3/8x1/4	.580	.81	.312
70-6C	3/8x3/8	.580	.88	.312
70-8B	1/2x1/4	.700	1.00	.312
70-8C	1/2x3/8	.700	1.00	.406
70-8D	1/2x1/2	.880	1.00	.406

*Ref.SAE No.060203 BA

The 70# Forged Female Elbow is a reliable compression fitting made to meet SAE J-512. This fitting is designed with a 90° angle relative to the tubing axis and can be used to branch off or make an angle any time after installation. The forged brass or acetal sleeve allows for easy assembly with no tube preparation required.

The 70 degree female elbow is used for flow control and can be used in mild steel, stainless steel, aluminium and plastics. The 70 degree female elbow includes a plastic or brass sleeve that offers corrosion resistance. This fitting is compatible with soft walled tubing and the neck size matches the tube OD when assembled.
