68# Brass Compression Fittings Male Adapter

Applications: Markets:
■■ Air lines ■■ Industrial
■■ Lubrication Lines ■■ Packaging
■■ Cooling lines ■■ Pneumatic
■■ Industry ■■ Printing
■■ Machinery
■■ Compressors
■■ Fluid transfer

Product Features:
■■ Meets functional requirements of SAE J-512
■■ UL Listed for flammable liquid
■■ Brass or acetal sleeve available
■■ No tube preparation
■■ Forged and extruded shapes

Reference Part No:
68 - 68A - s68

SPECIFICATIONS

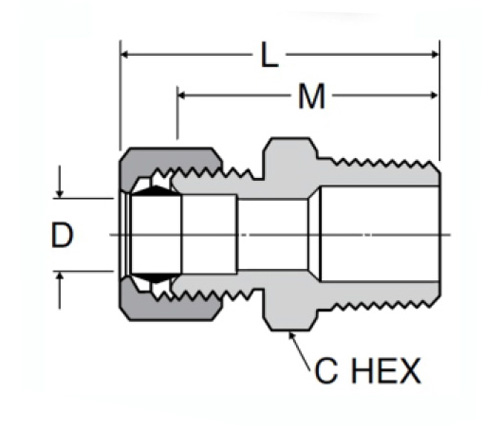

PART#	TUBE O.D × MALE NPTF	C	M	D
68-2A	1/8×1/8	3/8	.78	.940
68-3A	3/16×1/8	7/16	.84	.125
68-3B	3/16×1/4	9/16	.94	.125
68-4A	1/4×1/8	7/16	.88	.188
68-4B	1/4×1/4	9/16	.96	.188
68-40	1/4×3/8	11/16	1.03	.188
68-4D	1/4×1/2	7/8	1.09	.188
68-5A	5/16×1/8	1/2	.89	.234
68-5B	5/16×1/4	9/16	.97	.250
68-5C	5/16×3/8	11/16	1.06	.250
68-6A	3/8×1/8	9/16	.94	.312
68-6B	3/8×1/4	9/16	1.14	.312
68L-6B	3/8×1/4	9/16	1.03	.312
68-6C	3/8×3/8	11/16	1.14	.312
68L-6C	3/8×3/8	11/16	1.09	.312
68L-6D	3/8×1/2	7/8	1.19	.312
68-8B	1/2×1/4	11/16	1.22	.312
68L-8B	1/2×1/4	11/16	1.09	.312
68-8C	1/2×3/8	11/16	1.16	.406
68-8D	1/2×1/2	7/8	1.40	.406
68L-8D	1/2×1/2	7/8	1.23	.406
68-8E	1/2×3/4	1-1/16	1.38	.656
68-10B	5/8×1/4	13/16	1.22	.406
68-10C	5/8×3/8	13/16	1.22	.406
68-10D	5/8×1/2	7/8	1.48	.500
68L-12D	3/4×1/2	1"	1.44	.562
68-12E	3/4×3/4	1-1/16	1.50	.656

*Ref.SAE No.060102BA

These compression fittings are manufactured to meet the functional requirements of SAE J-512, and are UL Listed for flammable liquid. Constructed of brass or acetal, they include no tube preparation.

Industrial fittings for use in thermoplastic piping systems. Approved for use in flammable liquids and gases by SAE J-512, UL Listed for flammable liquid, available in brass or acetal sleeve. The nonremovable tube end can be removed directly through the tooling after assembly. Brass squeezers are recommended for these fittings when assembling them to a tube by hand. Sleeves of brass and acetal are available to fit the various tube sizes.
