69# Compresssion 90° Brass Male Elbow

Applications: Markets:
■■ Air lines ■■ Industrial
■■ Lubrication Lines ■■ Packaging
■■ Cooling lines ■■ Pneumatic
■■ Industry ■■ Printing
■■ Machinery
■■ Compressors
■■ Fluid transfer

Product Features:
■■ Meets functional requirements of SAE J-512
■■ UL Listed for flammable liquid
■■ Brass or acetal sleeve available
■■ No tube preparation
■■ Forged and extruded shapes

Reference Part No:
69 - 169 - S69 - 69A

SPECIFICATIONS

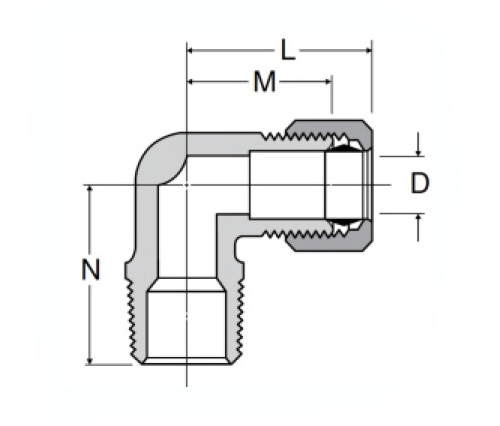

PART#	TUBE O.D*MALE NPTF	N	M
69-2A	1/8*1/8	.68	.59
69-3A	3/16*1/8	.68	.62
69-3B	3/16*1/4	.85	.61
69-4A	1/4*1/8	.75	.62
69-4B	1/4*1/4	.91	.65
69-4C	1/4*3/8	.93	.72
69-4D	1/4*1/2	1.11	.82
69-5A	5/16*1/8	.71	.67
69-5B	5/16*1/4	.82	.66
69-5C	5/16*3/8	.93	.81
69-5D	5/16*1/2	1.12	.82
69-6A	3/8*1/8	.72	.72
69-6B	3/8*1/4	.88	.75
69-6C	3/8*3/8	.93	.81
69-6D	3/8*1/2	1.18	.87
69-8B	1/2*1/4	.97	.88
69-8C	1/2*3/8	1.06	.88
69-8D	1/2*1/2	1.13	.94
69-8E	1/2*3/4	1.25	1.16
69-10C	5/8*3/8	1.25	1.06
69-10D	5/8*1/2	1.31	1.06
69-12D	3/4*1/2	1.31	1.19
69-12E	3/4*3/4	1.38	1.19

*Ref.SAE No.060202 BA

Our brass and acetal 90° male elbow is designed according to SAE J-512. It meets the functional requirements of that specification, with a compression joint and a formed end. The brass or acetal sleeve is embedded in a machined flange that provides rigidity, yet allows the tube(s) to be inserted without preparation.

90° male brass elbow fitting is designed to connect tubing without the need for tube preparation. This universal fitting may be used with other similar fittings to create complex piping systems that are easy to assemble and maintain.
