1480# Air Brake Nylon Tubing 45° Elbow

Product Features:
■■ Brass Body
■■ Meets D.O.T. FMVSS571.106 Performance
■■ Meets functional Requirements SAE J246 & SAE J1131
■■ Pre-applied Thread Sealant

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines
■■ Cab Controls

Reference Part No:
79NAB - 6279NTA - 1480 - S779AB

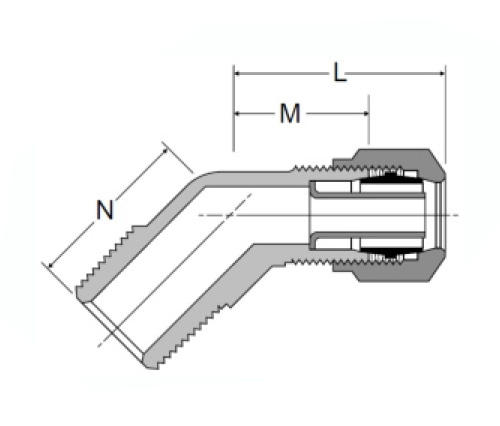

SPECIFICATIONS

PART#	TUBE O.D × MALE NPTF	M	N
1480-4A	1/4×1/8	.49	.63
1480-4B	1/4×1/4	.60	.85
1480-6A	3/8×1/8	.71	.68
1480-6B	3/8×1/4	.71	.85
1480-6C	3/8×3/8	.75	.94
1480-6D	3/8×1/2	.76	1.20
1480-8B	1/2×1/4	.84	.94
1480-8C	1/2×3/8	.84	.94
1480-8D	1/2×1/2	.87	1.16
1480-10C	5/8×3/8	.93	.98
1480-10D	5/8×1/2	.93	1.16

*Ref.SAE No.100302 BA

Our air brake tubing is designed for heavy duty use and designed to meet FMVSS571.106(A) & FMVSS109 standards. Brass fittings and pre-applied thread sealant ensures a reliable fit while increasing system efficiency.

The Air Brake Nylon Tubing 45° Elbow is used to connect large or small diameter primary or secondary air brake tubing. This accessory provides the necessary flexibility for installing multiple lines and fittings along many types of hydraulic lines. The Air Brake 45° Elbow is constructed from durable UNS-3175 coated spring steel with a zinc dichromate plated brass body and pre-applied thread sealant.

If you need an air brake fitting that can handle high pressure, ride quality and reliable performance, this 45° elbow is exactly what you’re looking for. The brass body is zinc-plated for resistance to corrosion and will hold up in any environment! The pre-applied thread sealant makes assembly quick and easy so you can get back to work as soon as possible.
