602 Male Branch Tee Inverted Flare Fittings

Product Features:
■■ All brass construction
■■ UL listed for flammable liquid and gas
■■ Meets functional requirements of SAE J512
■■ Steel nut for economy

Markets: Applications:
■■ Air Conditioning ■■ Refrigerant Lines
■■ Marine ■■ Brake Lines
■■ Mobile ■■ Fuel Lines
■■ Engines

Compatible Tubing:
■■ Copper
■■ Brass
■■ Aluminum
■■ Welded Steel Hydraulic Tubing

Reference Part No:
145 - 2451IFHD - 602 - 2600 - 600

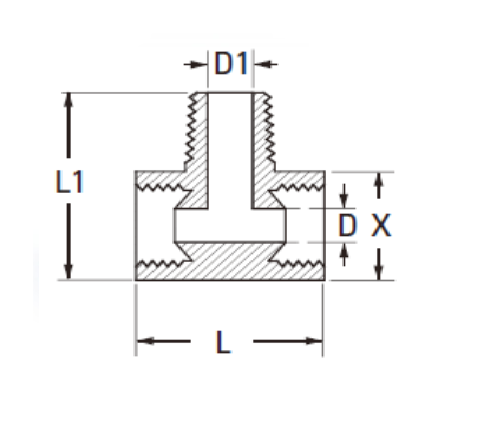

SPECIFICATIONS

PART#	TUBE O.D × MALE THREAD	D	D1	X	L	L1
602-3A	3/16×1/8	.125	.219	.84	.82	.84
602-4A	1/4×1/8	.188	.219	.91	.84	.91
602-5A	5/16×1/8	.219	.219	.97	.95	.97
602-6B	3/8×1/4	.344	.344	1.31	1.16	1.31

The 602 is a top quality, all brass inverted flare fitting with 3/16” O.D. x 1/8” male threads and an L1 of 78. The fittings are designed to UL standard 424. The 602 meets functional requirements of SAE J512.

Our 602 series male fittings are constructed of all-brass material, with a U.L. listed flammable liquid and gas rating. These fittings are engineered for applications that require low pressure piping and high flow rates. They can be found in refrigeration, marine and engine applications.

The branch tee fittings are installed in a manner similar to the branch pipe fittings except they are used where the tubing diameter is larger than the tube entering the fitting. The branch tee tube fittings are available in a variety of material types and sizes to meet your specific application requirements
