252 Inverted Flare Female Adapter Fittings

Product Features:
■■ All brass construction
■■ UL listed for flammable liquid and gas
■■ Meets functional requirements of SAE J512
■■ Steel nut for economy

Markets: Applications:
■■ Air Conditioning ■■ Refrigerant Lines
■■ Marine ■■ Brake Lines
■■ Mobile ■■ Fuel Lines
■■ Engines

Compatible Tubing:
■■ Copper
■■ Brass
■■ Aluminum
■■ Welded Steel Hydraulic Tubing

Reference Part No:
461FHD - 252 - 46W

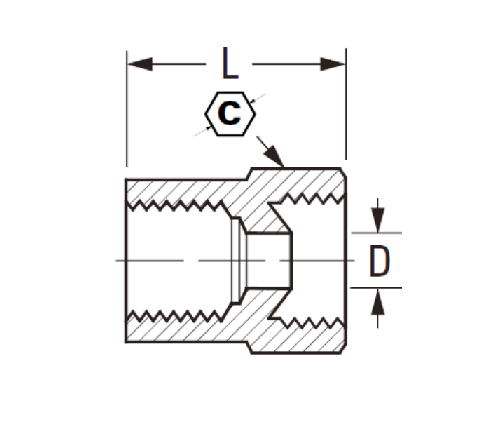

SPECIFICATIONS

PART#	TUBE O.D × THREAD	C	D	L
252-3A	3/16×1/8	15/32	.125	.62
252-4A	1/4×1/8	17/32	.188	.62
252-5B	5/16×1/4	19/32	.220	.70
252-6B	3/8×1/4	3/4	.281	.80
252-8C	1/2×3/8	29/32	.406	.91

*REF.SAE NO.040103 BA

This all brass female flare adapter has an inverted flare for use with standard male flared fittings. It provides a reliable seal to prevent leakage and is SAE J512 approved. The steel nut is recommended for economy applications, where a permanently installed flare fitting must still be removed or reinstalled in a short period of time.

Providing extra versatility and durability, the 252 series will accomodate pipes with an outside diameter of 3/16", 1/4", 5/16" and 3/8". This ensures that it is compatible with virtually all of your tank fittings. You'll also be impressed by its durable construction, ensuring a long life no matter how many times you use it.

This adapter fitting is designed to connect tubing to hoses and valves. Made of brass, this fitting meets industry standards and is designed for use in automotive and marine applications.

The Inverted Flare Female Adapter is a female fitting that is compatible with SAE 1/2" NPT threads and SAE 3/8" tubing. Constructed from durable materials and designed for extensive use, these fittings are great for any home or business.
