702 Inverted Flare Union Tee Fittings

Product Features:
■■ All brass construction
■■ UL listed for flammable liquid and gas
■■ Meets functional requirements of SAE J512
■■ Steel nut for economy

Markets: Applications:
■■ Air Conditioning ■■ Refrigerant Lines
■■ Marine ■■ Brake Lines
■■ Mobile ■■ Fuel Lines
■■ Engines

Compatible Tubing:
■■ Copper
■■ Brass
■■ Aluminum
■■ Welded Steel Hydraulic Tubing

Reference Part No:
244IFHD - 702 - 441

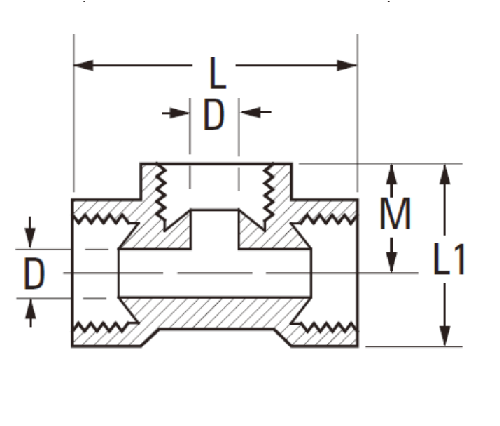

SPECIFICATIONS

PART#	TUBE O.D	D	M	L
702-2	1/8	.078	.330	.94
702-3	3/16	.125	.390	1.09
702-4	1/4	.188	.420	1.13
702-5	5/16	.219	.450	1.25
702-6	3/8	.281	.560	1.48
702-8	1/2	.406	.937	1.76

*REF.SAE NO.040401 BA

The Inverted Flare union tee fitting is used to connect two tubes. This fitting allows flow from one connection to exit from the opposite connection without reducing pressure or flow. It has a fully interlocking brass construction and features an SAE J512 compliant design, allowing it to resist corrosion. The inverted flare union tee can be used in both commercial and industrial applications such as air conditioning, refrigerant lines, marine engines, brake lines and mobile fuel lines.

Our 702 Inverted Flare Union Tee Fittings are made of brass, and meet the requirements of SAE J512. It has a steel nut for economy it can be used in the lines of antifreeze, brake fluid, marine engine cooling water and goo.
