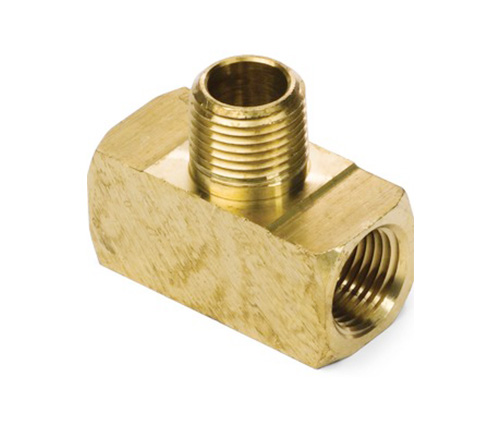

3600# Brass Fittings Branch Tee Brass Pipe Fittings

Product Features:       Markets:
■■ All brass construction ■■ Industrial
■■ Meets functional requirements of ■■ Construction
SAE J530 and SAE J531 ■■ Heavy duty truck
■■ Threads made to dryseal standards ■■ Mobile
■■ Both forgings and extrusions available   ■■ Factory/process automation

Applications: Compatible Tubing:
■■ Air Lines   ■■ Copper
■■ Water Line   ■■ Brass
■■ Cooling Lines ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
2224p - 3600 - T9 - X106 - 226 - 329 - 128 - 28281~28285

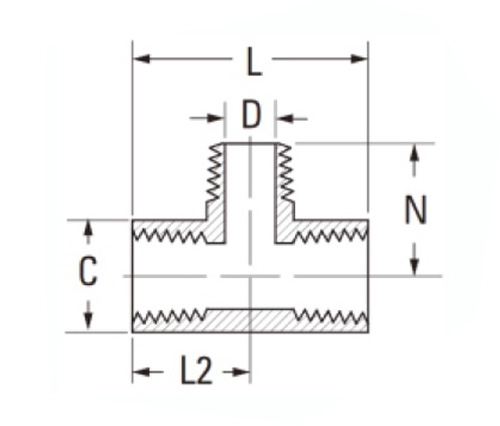

SPECIFICATIONS

PART#	Thread size	C	D	L2	N
3600-A	F1/8×M1/8	9/16	.219	1.10	.66
3600-B	F1/4×M1/4	11/16	.315	1.56	.91
3600-C	F3/8×M3/8	13/16	.438	1.68	.97
3600-D	F1/2×M1/2	1"	.562	2.18	1.25
3600-E	F3/4×M3/4	1"-1/4	.750	2.31	1.38

*Ref.SAE No.130425

Heavy duty branch tee fittings are made from heavy gauge brass, manufactured to SAE J530 and SAE J531 standards. They are available in both forgings and extrusions, which gives us the versatility to offer a wide variety of options for our customers. Constructed with both pressure- and temperature ratings, these branch tees are suitable for use in virtually any industrial process. Both brands of tubing can be used successfully with this fitting.Our line of Copper & Brass Branch Tee Fittings provides you with superior quality and reliable performance in the widest range of applications. Our qualified engineers can help you select the best product or design a system to meet your specific needs.
