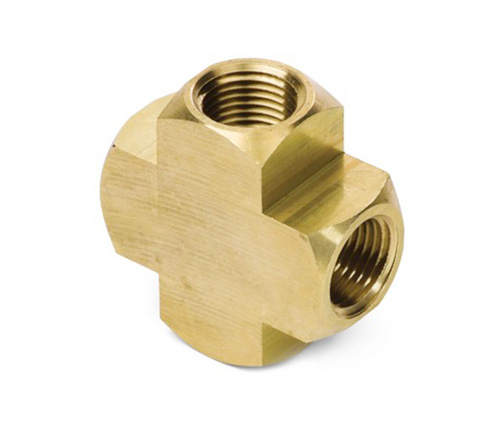

3950# Brass Fittings Cross Pipe Fittings

Product Features:       Markets:
■■ All brass construction ■■ Industrial
■■ Meets functional requirements of ■■ Construction
SAE J530 and SAE J531 ■■ Heavy duty truck
■■ Threads made to dryseal standards ■■ Mobile
■■ Both forgings and extrusions available   ■■ Factory/process automation

Applications: Compatible Tubing:
■■ Air Lines   ■■ Copper
■■ Water Line   ■■ Brass
■■ Cooling Lines ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
2205P - 3950 - 228 - 102A - 102BE - 28041~28045

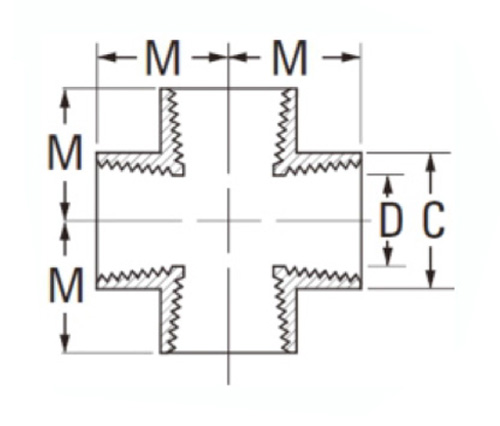

SPECIFICATIONS

PART#	Thread size	C	D	M
3950-A	1/8	1/2	.219	.50
3950-B	1/4	11/16	.312	.75
3950-C	3/8	13/16	.438	.81
3950-D	1/2	1"	.562	1.09

*REF.SAE.NO

The 3950 series brass fittings cross pipe fittings are made of all brass construction with a variety of threads available, such as flange thread and buttress thread, which are compatible with many common materials including copper, iron pipe, and steel. The fittings meet the functional requirements for industrial applications in the mobile, factory/process automation areas. Forged brass fittings manufactured to meet SAE J530, SAE J531 and ISO 2531 standards. Also available in extrusions. Suitable for use on air lines, water lines, positive and negative pressure applications.
