1569S Push in Swivel 90°male Elbow

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494 & SAE J2494-3

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:
AQ69DOTS - 169PMTNS - 1869 - DQ69DOTS - 1569SDOT

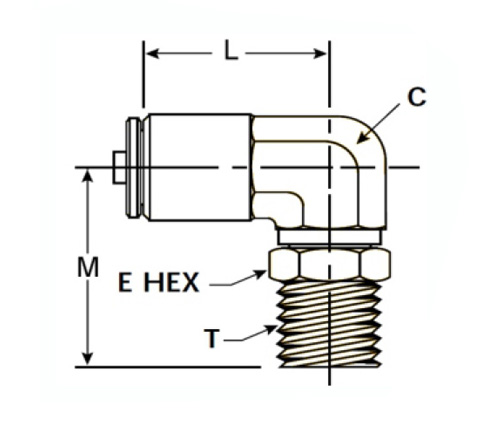

SPECIFICATIONS

PART#	Tube O.D×MALE NPTF	C	M	L	E
1569S-D0T-4A	1/4×1/8	3/8	.89	.88	7/16
1569S-D0T-4B	1/4×1/4	3/8	1.07	.88	9/16
1569S-D0T-4C	1/4×3/8	1/2	1.13	1.00	11/16
1569S-D0T-6A	3/8×1/8	1/2	.99	.98	7/16
1569S-D0T-6B	3/8×1/4	1/2	1.10	.98	9/16
1569S-D0T-6C	3/8×3/8	1/2	1.14	.98	11/16
1569S-D0T-6D	3/8×1/2	5/8	1.46	1.07	7/8
1569S-D0T-8B	1/2×1/4	5/8	1.20	1.16	9/16
1569S-D0T-8C	1/2×3/8	5/8	1.25	1.16	11/16
1569S-D0T-8D	1/2×1/2	5/8	1.46	1.16	7/8
1569S-DOT-10C	5/8×3/8	3/4	1.23	1.40	11/16
1569S-DOT-10D	5/8×1/2	11/16	1.64	1.40	7/8
1569S-D0T-12D	3/4×1/2	15/16	2.46	1.40	1-1/16
1569S-D0T-12E	3/4×3/4	15/16	2.46	1.40	1-1/16

Designed for heavy duty applications such as air brakes, air tank and air ride sliders, tire inflation, primary & secondary air lines. Features: Brass collet, Buna N o-ring and stainless steel tube support. Compatible tubing: SAE J844 Type A & B nylon tubing (reference part no: AQ69DOTS).The male elbow is an oulet, which allows a tube connection of outside diameter less than 12mm to be fitted over an angle of 90° and in two cases, 45°. The end is tapped and accepts a M20x1.5 thread. The elbows fit inside the barrels / tubes of brake lines and are not compatible with copper tubing.
