PMCE Push-in-Connect Copper

Product Features:
■■ Self-centering of the cartridge in the cavity
■■ Push-in connection
■■ Designed for automation assembly process
■■ SAE & NSF cartridges available

Markets:
■■ Industrial
■■ Pneumatic
■■ Life Science
■■ Automation
■■ Heavy Duty Truck

Applications:
■■ Air
■■ Cab Controls

SPECIFICATIONS

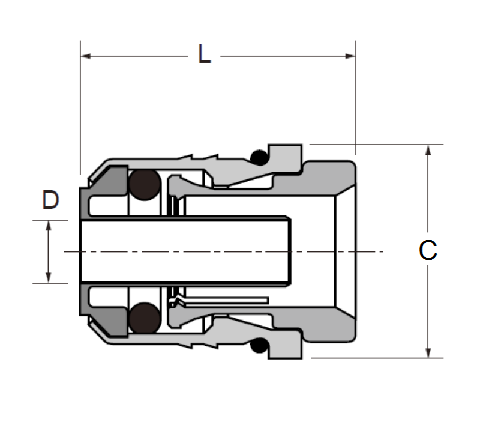

PART#	TUBE SIZE O.D	Cavuty size	L	M	O.D	FLOW DIA .D
PMCE-5/32	5/32	.346	.57	.43	.44	.127
PMCE-4	1/4	.504	.64	.44	.56	.140
PMTCE-4-8	3/8	.775	.66	.42	.87	.140
PMTCE-6	1/2	.650	.84	.64	.75	.217
PMTCE-6-8	5/8	.775	.84	.64	.64	.217
PMCE-8	3/4	.775	.98	.77	.77	.338

PMCE Push-In-Connect copper tube fittings have an integral tube that self-centers in the cartridge, a push-in connection, and are designed for automation assembly processes. This push-in connector features a self-centering cartridge design and is available in standard or NSF versions. The PMCE series, sometimes referred to as push-in cone fittings, includes an o-ring seat that creates a friction fit between the rigid tubing and nipple. The advantage of this system is its ease and speed of installation. PMCE 5/32 inch Copper push-in fitting ideal for connecting flexible tubing to valves, filters, instruments and other equipment. Compatible with all common materials such as PVC, PTFE, nylons and various thermoplastics and thermoplastic elastomers including acetal, nylon 6-6, nylon 6 and SANTOPRENE.
