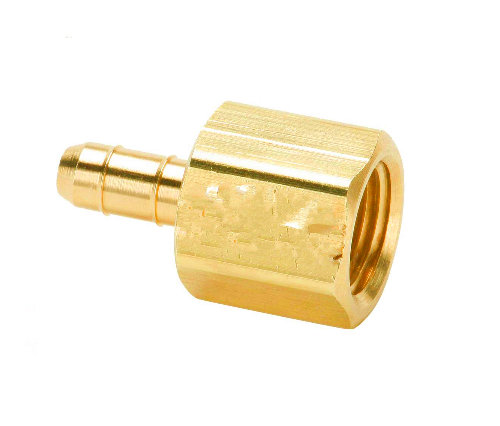

26# Mini Hose Barb Female Connector

Product Features:
■■ Compact
■■ One piece
■■ No clamp required
■■ Good vibration resistance

Markets:
■■ Pneumatic
■■ Environmental control

Applications:
■■ Pneumatic Systems
■■ Climate Control
■■ Humidifiers
■■ Filters

Compatible Tubing:
■■ Polyethylene

SPECIFICATIONS

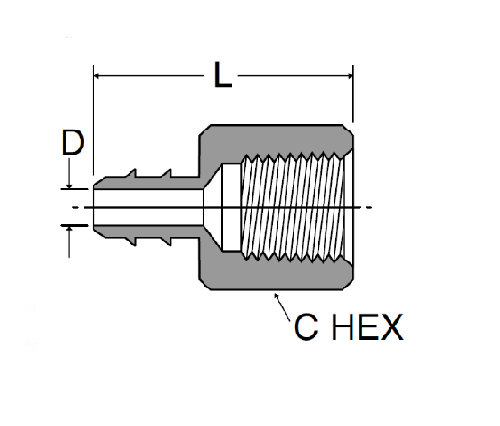

All size are tube o.d(i.d)

PART#	HOSE O.D×FEMALE THREAD	D	L	C
26-4A	1/4×1/8	.120	.91	1/2
26-4B	1/4×1/4	.120	.93	11/16
26-6A	3/8×1/8	.187	.93	1/2
26-6B	3/8×1/4	.187	1.06	11/16

The Series 26 Mini Hose Barb Connectors are compact, one piece fixtures with no clamp required. The connector is well suited for use with pneumatic systems, environmental control and humidifiers. The Series 26 Mini Hose Barb Connectors are compatible with any type of tubing made from polyethylene.

Our Mini Hose Barb Female Connector is great for pneumatic systems. It has a One Piece Design and No Clamp Required, making it fast and easy to install. Our Mini Hose Barb Female Connector is compatible with Polyethylene tubing.

This female connector has a standard straight shape and a one-piece design. Low profile, lightweight and easy to install, it’s designed for use with polyethylene tubing.
